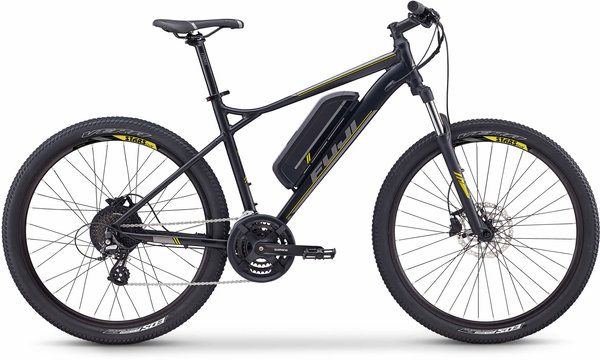

Fuji E-Nevada 27.5 2.1
This item is currently not available.
Details
When you're ready to jump into off-road riding, the E-Nevada can help get you started in style and power. Based on our popular Nevada series, the E-Nevada adds a 250-watt, pedal-assist motor to give you the boost you need to get up the hill or across the ridge. With Shimano hydraulic disc brakes, the E Nevada has the stopping power needed to feel confident wherever the trail may lead.
- A1-SL aluminum frame offers Fuji's best durability.
- 100mm travel suspension fork smooths the ride on rough roads and trails.
- Shimano hydraulic disc brakes provide superior stopping power in all weather conditions.
- 48/38/28T triple crankset and 8-speed 11-32 cassette give a super-wide gear range.
Specs
| Drive System | Bafang H400B rear hub motor, 250W rated power, 20mph maximum assist |
|---|---|
| Display | Bafang 5 mode LED display w/ walk assist |
| Battery Type/Weight | Fuji Power Pack 417Wh w/ 2A charger |
| Frame | Fuji A1-SL Alloy front and rear triangle w/ mounting for down tube battery, 1 1/8" head tube, post disc mount, replaceable hanger |
| Fork | HL VASA 28S 525 AMS 27.5, travel 100mm |
| Headset | 1 1/8", Zero Stack, caged bearings |
| Rims/Wheels | Aluminum double wall |
| Hubs | Shimano TX505 CL disc, 36H, front / Bafang motor hub, 6 bolt disc, 36H, rear |
| Spokes | Stainless steel |
| Tires | Vera Eos, 27.5" x 2.2", 30tpi |
| Crankset | Shimano TY301 |
| Chainrings | 48/38/28T, w/ chainring guard |
| Bottom Bracket | Bafang cadence sensor bottom bracket |
| Chain | KMC X8 w/ Missing Link, 8-speed |
| Front Derailleur | Shimano Tourney TY710 |
| Rear Derailleur | Shimano Altus M310 |
| Cassette/Rear Cogs | Shimano Acera HG31, 11-32T, 8-speed |
| Shifters | Shimano Altus M310, Rapid Fire |
| Handlebars | Oval Concepts riser bar, 6061 alloy, 15mm rise, 5 degree sweep, 31.8mm clamp |
| Tape/Grips | Oval Concepts 234 Trail, single density Kraton |
| Stem | 6061 aluminum, +/- 6 degree rise, 31.8mm clamp |
| Brake Levers | Shimano MT200 hydraulic disc 3 finger levers |
| Brakes | Shimano MT200 hydraulic disc, rotors: 180mm front, 160mm rear |
| Pedals | Nylon platform, chromoly axle |
| Saddle | Oval Concepts 300P, steel rail |
| Seatpost | Oval Concepts, 6061 alloy micro adjust, 30.9mm diameter |
| Accessories & Extras | Alloy kickstand, bell |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Satin Black / 15-inch | 785749151182 | 1494262715 | 5072 |
| Satin Black / 17-inch | 785749151199 | 1494262717 | 5073 |
| Satin Black / 19-inch | 785749151205 | 1494262719 | 5074 |
| Satin Black / 21-inch | 785749151212 | 1494262721 | 5075 |
| Satin Cyan / 15-inch | 785749174921 | 1494269915 | |
| Satin Cyan / 17-inch | 785749174938 | 1494269917 | |
| Satin Cyan / 19-inch | 785749174945 | 1494269919 | |
| Satin Cyan / 21-inch | 785749174952 | 1494269921 |
