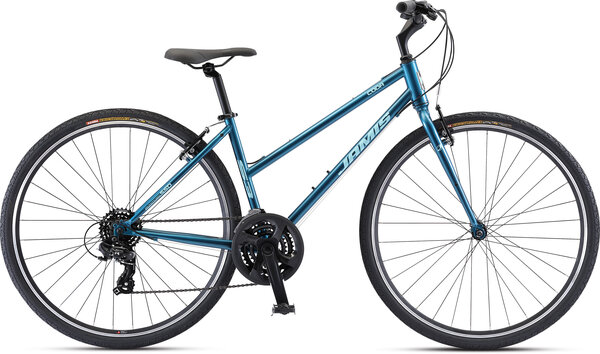

Jamis Coda S3 Step-Over
Details
Our Codas have been some of our most popular bikes for years, and for good reason. There's the smooth-riding Reynolds Chromoly frames, the well-thought-out geometry, and the heads-up riding position. Not to mention the smart component selections, from a super-wide gearing range to easy-adjust stems. These bikes are simply some of the best and most versatile around.
Specs
| Frame | Size Specific Design Double-butted chromoly frame, 48mm extended head tube with reinforced collars, double tapered cromo stays, kickstand mount, forged dropouts and fender/rack eyelets |
|---|---|
| Fork | Steel tapered straight blade unicrown with bulge butted steerer and 50mmm crown, low-rider carry mounts and forged dropouts with 2 fender eyelets |
| Headset | Threadless internal, 1 1/8" |
| Rims/Wheels | Double wall alloy rims, 32H, alloy hubs with QR and 14g stainless steel spokes |
| Tires | Kenda Eurotrek K-197, 700 x 40c |
| Crankset | Forged alloy, 48/38/28T, 170mm with chain guard |
| Bottom Bracket | VP sealed cartridge, 68 x 122.5mm |
| Chain | KMC Z51 |
| Front Derailleur | Shimano TY510 |
| Rear Derailleur | Shimano Tourney TY300 |
| Cassette/Rear Cogs | Shimano HG200 7-speed, 12-32T |
| Shifters | Shimano EZ-Fire Plus ST-EF500 shifters, 21-speed |
| Handlebars | Jamis Riser bar, aluminum 25.4 x 10° sweep x 40mm rise x 600mm |
| Tape/Grips | Anatomic double density kraton |
| Stem | Jamis alloy hi-rise, quill type, 25.4 x 80mm extension x 35° x 150mm (14-15"), 180mm (18") |
| Brakes | Promax TX-121 alloy linear-pull brakes with front power modulator and Shimano brake levers |
| Pedals | Platform style, steel cage/resin body, toe clip attachable |
| Saddle | NEW Jamis Touring Femme with SL cover |
| Seat Post | Jamis alloy micro-adjust, 27.2 x 350mm alloy clamp |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Ano Deep Blue / 14-inch | 845436081915 | 03-3469BL |
| Ano Deep Blue / 16-inch | 845436081939 | 03-3471BL |
| Ano Deep Blue / 18-inch | 845436081953 | 03-3473BL |
| Charcoal / 14-inch | 845436081922 | 03-3470CL |
| Charcoal / 16-inch | 845436081946 | 03-3472CL |
| Charcoal / 18-inch | 845436081960 | 03-3474CL |
